PCB Soldering Machine SMT Lead Free Wave Solder Machine(N300)

Shenzhen Jaguar Automation Equipment Co.,Ltd.

PCB Soldering Machine SMT Lead Free Wave Solder Machine(N300)

  • 1
  • 2

Brand Name : automation JAGUAR

Model Number : JAGUAR N200

Certification : CE

Place of Origin : shenzhen

MOQ : 1

Price : usd7000set

Payment Terms : T/T, Western Union

Supply Ability : 100set/month

Delivery Time : 25days

Packaging Details : vacuum packing and wooden packing

Model No. : JAGUAR N300

Number of heating zones : 2

Length of heating zones : 1200mm

Body size : 2800(L)*1250(W)*1560(H)

Outside dimension : 3600(L)*1250(W)*1560(H)

Weight : 1000KG

Total/running power : 16KW/6KW

Air supply : 0.5MPa

Preheating method : IR(standard)/Hot air

Preheating power : 220V 6KW

Solder pot capacity : 280KG

Contact Now

Keywords:

wave soldering, wave solder, wave solder machine, wave soldering mnachine, solder wave, wave soldering video, wave solder pallets, wave soldering process, electrovert wave solder, selective wave soldering, smt machine.


Specification:

Model No. JAGUAR N300
Number of heating zones 2
Length of heating zones 1200mm
Body size 2800(L)*1250(W)*1560(H)
Outside dimension 3600(L)*1250(W)*1560(H)
Weight 1000KG
Total/running power 16KW/6KW
Air supply 0.5MPa
Preheating method IR(standard)/Hot air
Preheating power 220V 6KW
Control method PC +PLC/Touchtone/Touch screen
Range of temp. control Room temperature---300ºC
Preheating time About 10-15mins for setting 150ºC
Solder type Lead-free / Sn-Pb
Solder pot capacity 280KG
Solder pot temperature 300ºC
Solder power 380V 8KW
Solder temp. control method PID&SSR
Wave crest drive power 1KW 220V
Warm-up time of solder About 120mins for setting 250ºC
PCB width 50-300mm
Convey speed 300-1800mm/min
Convey direction L→R (R→L optional)
Convey angle 4-7 º
Flux pressure/capacity 3-5 bar/6L

PCB Soldering Machine SMT Lead Free Wave Solder Machine(N300)


INTRODUCTION
1.Efficient,energy-saving,lead-free, environment-friendly,safe and brand-new design,simple operation,convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle,Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4.Preheating system uses 3-stage powerful air system, excellent heat preservation, temperature warm-up, temperature uniformity, no more than ±2ºC.
5.Special alloy transportation chain claws, non-stick tin, reinforced, and ensures the quality of welding PCB board.
6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
7.Lead-free solder furnace with independent design, environment protection and safety, easy to clean
8.Tin heating furnace uses high-speed PID and 2-stept indepent outer-heating control, warm-up quickly and eliminates the flaws of stove tin explodes.
9.With time controller, can preset switch functions, tin stove machine heating picks up in 90minutes.
10.With black box memory function, can always get at production management records, improve work efficiency.
11.Reasonable design of environment protection, and automatic washing claw, ensure the cleanliness of claws.
12.The design is reasonable and safe with sensitive fault alarm system, to ensure the stable performance the safety of operators.

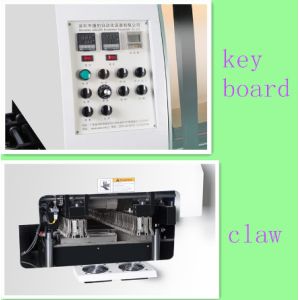

Spares show

PCB Soldering Machine SMT Lead Free Wave Solder Machine(N300)PCB Soldering Machine SMT Lead Free Wave Solder Machine(N300)

Customer's Factory

PCB Soldering Machine SMT Lead Free Wave Solder Machine(N300)

Exhibition

PCB Soldering Machine SMT Lead Free Wave Solder Machine(N300)
